The Continuous Batch Biodiesel Plant produces 150-400 gallon batches of Biodiesel hourly and can produce 2.3 million gallons of Biodiesel annually.
The Commercial Biodiesel processor is the heart of the plant, and with the addition of separation & washing modules, it can operate 24/7.
Continuous Batch Commercial Biodiesel Plant Features:
400 Gallon Batch Pricing: $174,177
- 1 – 110 Gallon HDP Inductor module

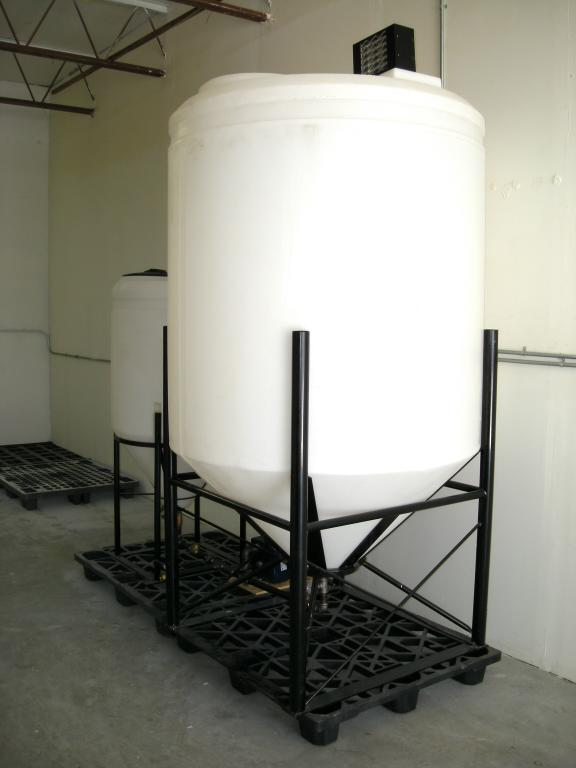

- 1 – 500 Gallon HDP Reactor module
- 4 – 500 Gallon HDP Separation modules
- 2 – 250 Gallon HDP Ion Dry Wash towers
- 1 – Methanol recovery module
- 1 – 112 GPM Explosion-proof Methoxide/Biodiesel pump
- 2 – Biodiesel wash pumps
- 1 – Glycerin pump
- SS temp gauge
- Brass ball valves
- External Heat Exchanger
- Hardware installation kit (Black Steel)
- Digital scales
- Safety Kit (goggles, apron, & gloves)
- Complete instructions
The Continuous Batch Commercial Biodiesel Plant Automation Upgrade
$75,600
The Continuous Batch Biodiesel Plant Automation Upgrade will completely automate daily operations.
The Commercial Biodiesel Plant Automation Upgrade uses Eaton products for quality installation.
The Continuous Batch Commercial Biodiesel Plant Automation Upgrade Features:

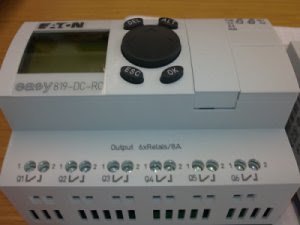

- Eaton Easy 819-DC-RC
- Eaton Easy618-DC-RE
- Eaton Easy power supply
- Automated ball valves
- Eaton level sensors
- Control and sensor wiring harness
- B-500 automation software

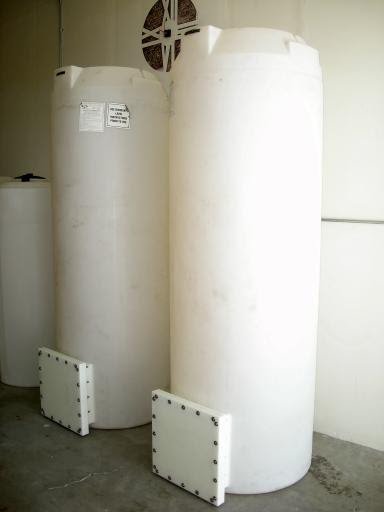

Ion Exchange Tower
$24,206-pair
The Ion Exchange Tower is designed to be sold as a “lead” tower and a “lag” tower in pairs.
Each tower holds 880 pounds of any Ion Exchange Resin and has a flow rate of 5 gallons per minute.
Using this filter at the recommended flow rate will ensure ASTM-spec Biodiesel.
The tanks have a lifetime warranty.
The balance of the system has a 1-year warranty.
Ion Exchange Tower Features:
- 250 gallon Tower capacity
- 8 Inch top loading man-way
- 15 Inch cleanout
- 5-gallon per minute Biodiesel pump
- Dimensions: 89″ x 30″
- HD Plastic
- Schedule 40 Flow Head
- 880 pounds (Ion Exchange Resin) capacity
- Complete instructions
Safety features of this quality Biodiesel production plant include:
- Black Steel plumbing
- Brass ball valves
- Explosion-proof pump
- We provide our exclusive heating system – the “External Heat Exchanger,” to heat the oil safely before and during conversion.
